Introduction
In recent years, motion sensor street lights have grown quickly in outdoor lighting. Higher energy costs, climate concerns, and government support make cities, businesses, and homeowners choose this smart, green option.
Unlike normal outdoor led street lights that use grid power, solar street lights run on the sun’s energy. With motion sensors, they brighten only when needed and dim at other times. This saves energy, cuts costs, and improves safety, making them useful for both public and private projects.
What is solar street light with motion sensor?
A led solar street light with a motion sensor works off the grid. It uses solar panels to charge a battery that powers the led street lamp. The sensor can spot movement—like people, bikes, or cars—and change the brightness. This saves energy, cuts light pollution, and makes the system last longer.
Core Components
A typical system includes:
Solar light panel – Collects sunlight and turns it into power.
Rechargeable solar light battery – Saves the power, often lithium-ion or LiFePO.
Led a light – Gives bright light while using little energy.
Solar charge controller – Handles charging, discharging, and sensor control.
Motion Sensor – Sees movement and changes brightness.
Fixture & Pole – Holds the light, strong against weather and rust.
Motion Sensor Types
PIR Sensor (Passive Infrared) – Senses body heat and movement. It is common because it is cheap and works well.
Microwave Sensor – More sensitive than PIR. It can even detect motion through thin objects.
Dusk-to-Dawn Sensor – Turns the light on at night and off when the sun rises.
Hybrid Systems – Use two or more sensor types for smarter lighting.
How Do Solar Street Lights with Motion Sensors Work?
Daytime Operation
In the day, the panel solar led takes sunlight and turns it into power. This power is stored in the battery for use at night. Some advanced systems use mppt charge controllers, which help charge the battery more efficiently.
Nighttime Activation
At dusk, the controller activates the led street light lamp. When no movement is detected, the lamp remains in dim mode (typically 20–30% brightness). When a person, vehicle, or cyclist passes by, the motion sensor triggers full brightness. After a set period (15–60 seconds), the lamp returns to dim mode.
Pros of Solar Street Lights with Motion Sensors
Energy Efficiency
Solar power motion sensor lights adjust their brightness. This can cut wasted energy by up to 70%. Unlike regular street lights, they keep working well and save a lot of electricity costs, even in bad weather.
Cost Savings & ROI
Solar motion sensor lights are a type of off the grid lighting, making their own power without relying on the utility. This means no monthly electricity bills. They are also a cost light option, since setup is cheaper with less wiring and digging, cutting both labor and infrastructure costs. With these savings, most projects earn back the cost in 3–5 years, and larger projects pay back even faster. This makes them not only reliable eco-friendly lighting, but also a smart financial choice.
Enhanced Safety & Security
Adaptive lighting with led lights brighter when it sees movement, making places feel safe. These safety night lights stop loitering and cut down on unwanted acts, so people feel safer at night. In parks, streets, and parking lots, this smart lighting helps prevent crime and builds trust in public areas. It also gives people comfort, encouraging more use of outdoor spaces after dark and helping both walkers and drivers feel secure.
Eco-Friendly Benefits
Motion sensor outdoor solar lights run on 100% solar power. They do not use fossil fuels, so they cut greenhouse gases and shrink the carbon footprint for cities, businesses, and homes. Their clean use supports climate goals and shows care for the planet. By avoiding extra light, they also cut light pollution, protect the night sky, and help wildlife. These lights save energy and bring greener, healthier, and more sustainable communities.
Cons of Solar Street Lights with Motion Sensors
Higher Upfront Cost
Solar motion sensor street lights cost about 10–20% more than regular led & lights because they have advanced sensors and controls. This higher price may stop some buyers, especially for big projects. But over time, the savings from lower energy use and less maintenance make them a smarter long-term choice.
Weather Dependence
These solar charging systems use sunlight to charge, so cloudy or rainy days can lower efficiency. To avoid problems, it is important to size the battery correctly and plan for backup. Good system design also helps keep led light bulb efficiency high, even when the weather is bad. Systems with bigger capacity or hybrid backup can keep working in areas with heavy rain or long bad weather.
False Triggers
Motion sensors can turn on by mistake from pets, moving leaves, or other things in the area. These false triggers waste energy and make the battery run out faster. By lowering the sensitivity, picking the right sensor, and placing it in a calm spot, you can cut down on unwanted triggers and make the system work better every day.
Installation Limitations
Solar light panels need clear sunlight to work well. solar lights in shaded areas—such as under trees, near tall buildings, or close to poles—will have lower energy output and weaker sensor coverage. sunny spots and setting the panels at the right angle mount bracket are key to getting the best efficiency. Poor planning during setup can cause lower performance and more maintenance over time.
Maintenance Complexity
Solar motion sensor outdoor lights are easy to use but still need some care. Sensors may need resetting if they stop picking up movement well, and batteries will need replacing over time. Checking them often helps keep them working and avoids sudden problems. This upkeep is simple but takes more effort than grid-powered lights and may need a little technical know-how.
Applications of Solar Street Lights with Motion Sensors
Urban Roads & Pathways
Cities can save on power bills and improve safety with exterior solar motion sensor lights. They give even lighting that helps both drivers and walkers.
Residential Areas
In gated communities and driveways, lights turn on when people or cars come close. This keeps walkways safe and makes the home feel welcoming.

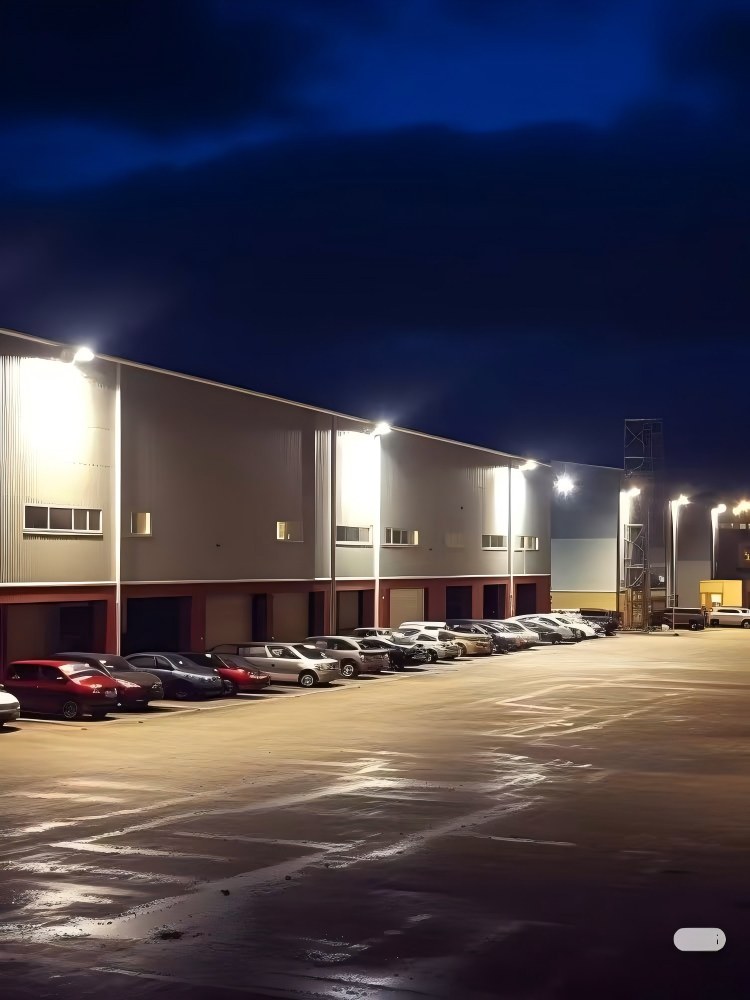

Commercial Parking Lots
Solar motion detector outdoor lights give brightening light only when needed. They save energy, make it easier to see, and keep shopping areas safer.
Parks & Gardens
Solar lights motion sensor outdoor give soft white lumens in parks and gardens without strong glare. They let people enjoy evening walks and events while keeping nature safe.
Remote & Off-Grid Locations
In villages, highways, or places without steady power, solar streetlights give safe light without big solar lamp cost. They keep people safe and let communities use the space after dark.
Buying Guide: How to Choose the Right Solar Street Light with Motion Sensor
Evaluating LED Light Source
Focus on clear numbers, not just general benefits. Check lumen output to be sure the light is bright enough. Pick LEDs with CRI of 80 or higher for true colors. Choose a CCT of 3000K–5000K: warmer light (3000K–3500K) for homes, cooler light (4000K–5000K) for shops or roads.
Choosing the Right Sensor
Match sensor type to the application.
PIR sensors: Affordable and reliable, ideal for pedestrian paths and residential walkways.
Microwave sensors: Higher sensitivity and wider coverage, better for parking lots and open areas.
Dusk-to-dawn sensors: Ensure automatic on/off operation, useful for sites requiring continuous illumination.
Selecting the right sensor balances detection accuracy with cost and maintenance needs.
Battery Capacity
Choose lithium-ion or LiFePO? batteries for long life. Make sure the capacity covers daily use and has backup for cloudy days.
Controller Quality
Pick solar power charge controllers with dimming, IoT links, and set schedules to save more energy.
Waterproof & Durability
Use at least IP65 waterproofing and IK08 impact strength. Strong parts like coated aluminum, stainless screws, and UV-safe covers work well in coastal or industrial areas. Good silicone seals keep out water and help the lights last longer.
Warranty & Certification
Check for standards like IEC, CE, and RoHS. Ask for at least a 3–5 year warranty—longer is better. For towns and businesses, good certification and warranty reduce risk and protect the investment.
Cost vs Value Analysis
Initial Cost vs Long-Term Savings
Solar-powered street lights cost more at first because of panels, batteries, and controllers. But they have no power bills, need less care, and last longer. While the first cost is higher, the savings in energy and upkeep soon make up for it.
ROI Estimation
Return on investment is key for cities and businesses. With lower bills and less upkeep, most solar street lights pay for themselves in 3–5 years. After that, they can run for 5–15 years with almost no extra cost to run led bulb, giving big financial benefits.
Total Cost of Ownership (TCO)
Compared to grid lights, solar lighting systems cost less over their life. In 10 years, smart sensors can cut costs by 50–60%. Savings come from no cabling, lower energy use, less battery strain, and longer LED life. This means fewer replacements and steady, low cost high lumen lighting.
Subsidies & Incentives
Governments support solar lighting with subsidies, tax breaks, and green loans. These can cut purchase costs or reward carbon-saving projects. In some areas, using solar lights also helps towns or companies meet ESG rules. Such support makes payback faster and systems more affordable.
Best Practices for Installation & Maintenance
Site Selection
Keep solar led panels clear of shade from trees or buildings so they get full sunlight. Set the panels at the right tilt for your location to capture more energy. Place solar poles in good spots to spread light evenly on roads, paths, or open areas without dark spots.
Installation Guidelines
For good lighting, use poles 4–10 meters high, based on road width. Keep spacing about 2.5–3 times the height of a light pole for even light. The right height and distance between utility pole cut shadows, improve visibility, and make nights safer for walkers and drivers.
Routine Maintenance
Clean solar charging panels every 3–6 months to clear dust and dirt. Check the battery once a year to be sure it still stores enough energy. Inspect the sensors often and reset them if they get weak. Regular care makes the solar powered light system last longer, lowers repair costs, and keeps the lights working well all year.
Troubleshooting Common Issues
Dim light usually means a battery problem—an old battery or weak charging. Many false triggers show the motion sensor is too sensitive and needs a reset. If backup time is short, check how well it charges and whether the battery capacity is enough. Quick checks and small fixes usually bring the system back to normal without costly parts.
Future Trends in Motion Sensor Solar Street Lights
Integration with Smart Cities
IoT connectivity enables remote monitoring, fault detection, and adaptive scheduling.
AI-Based Adaptive Lighting
Artificial intelligence can predict traffic flows and adjust brightness dynamically.
Advanced Energy Storage
Next-gen batteries such as solid-state lithium or supercapacitors will boost reliability.
Sustainable Manufacturing
Recyclable materials and circular economy models will shape the future of street lighting.
Conclusion
Solar street lights with motion sensors strike a powerful balance between sustainability, safety, and cost efficiency. They address modern challenges like rising energy prices, carbon reduction goals, and public safety needs.
While they come with higher upfront costs and environmental dependencies, the long-term benefits—lower operating costs, extended system life, and eco-friendliness—make them a smart investment.
For municipalities, businesses, or homeowners seeking reliable and efficient outdoor lighting, motion sensor solar street lights are not just a trend—they are the future of sustainable urban infrastructure.
FAQ:
1.How do solar motion-sensor lights work?
They stay dim at night and get bright when they sense people or cars. A solar panel charges a battery in the day.
2.Where should I place the panels and poles?
Keep panels out of shade and set the right tilt for your location. Space poles about 2.5–3× the pole height for even light; use 4–10 m poles based on road width.
3. What specs should I check?
Lumen output (enough brightness), CRI ≥ 80 (true color), and CCT 3000K–5000K (warmer for homes, cooler for roads/shops). Use at least IP65 and IK08.
4.What upkeep is needed?
Clean panels every 3–6 months, check batteries yearly, and reset sensors if range drops. Quick checks fix most issues.
5.What about cost and payback?
Upfront cost is higher, but no power bills and less upkeep cut lifetime costs. Many systems pay back in 3–5 years; incentives and smart control can save 50–60% over 10 years.
