How Do Dusk-to-Dawn and Photocell Sensors Work in LED Lighting?

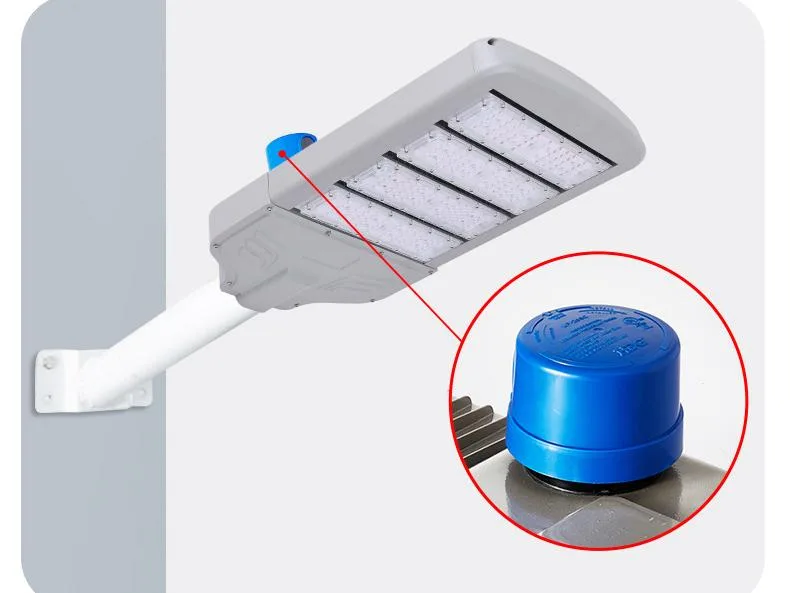

Understanding dusk to dawn led lighting from a System-Level View

Why modern cities rely heavily on dusk to dawn led outdoor lighting

Dusk-to-dawn automation is now the main control method used in city lighting systems. Instead of relying on people to switch lights on and off, or using fixed timer schedules, a dusk-to-dawn sensor turns the street led lights on when the ambient light drops to a set level. This real-time response is important for:

Road safety during fog, storms, heavy clouds, or pollution
Dusk to dawn light sensors help outdoor street lights led switch on at the right moment, keeping roads bright even when bad weather makes the sky dark. In heavy fog or peak-traffic hours, the lighting controller can increase brightness or extend coverage to maintain safe visibility for drivers and pedestrians.

Energy reduction, eliminating hundreds of hours of unnecessary runtime

Dawn to dusk light sensor prevent outdoor led street lamps from turning on too early or staying on longer than needed. During low-traffic periods or clear weather, the system lowers brightness or reduces coverage to save energy and cut operating costs. Real-world studies from Tondo-IoT, including data from cities such as San Jose, show that smarter dimming and reduced over-lighting can deliver more than 50% energy

Operational consistency, ensuring thousands of luminaires turn on uniformly

All street lights – led come on at the same time. This keeps streets evenly bright and avoids dark spots. Research from Tondo-IoT also shows that matching lighting levels to roadway type improves consistency and prevents over-lighting across the network.

Maintenance reduction, since dusk to dawn motion sensor lights avoid excessive ON time Because the lights run only when needed, they last longer and need fewer repairs. Lower brightness in low-demand zones also reduces wear, cutting the number of site visits over time.

For cities managing 10,000+ luminaires, automating “night activation” is no longer optional—it is core infrastructure.

Large cities depend on dusk to dawn light control because manual switching or timers cannot safely or efficiently manage so many outdoor street lights. A smart switch dusk to dawn system, supported by real-world city data, makes large lighting

Dawn to dusk sensors vs traditional timers

Timers: fixed schedules, inaccurate during weather changes, and need seasonal adjustment.

Photocells: ambient-light-based ON/OFF, automatic, adaptive, and maintenance-free.

A traditional timer can cause 200–300 hours of over-illumination each year. A recent street-light retrofit in Gangcha County showed similar results, with each lamp reducing about 280 hours of unnecessary lighting annually after switching from timers to dusk-to-dawn sensors. A dusk till dawn lighting outdoor network removes this waste.

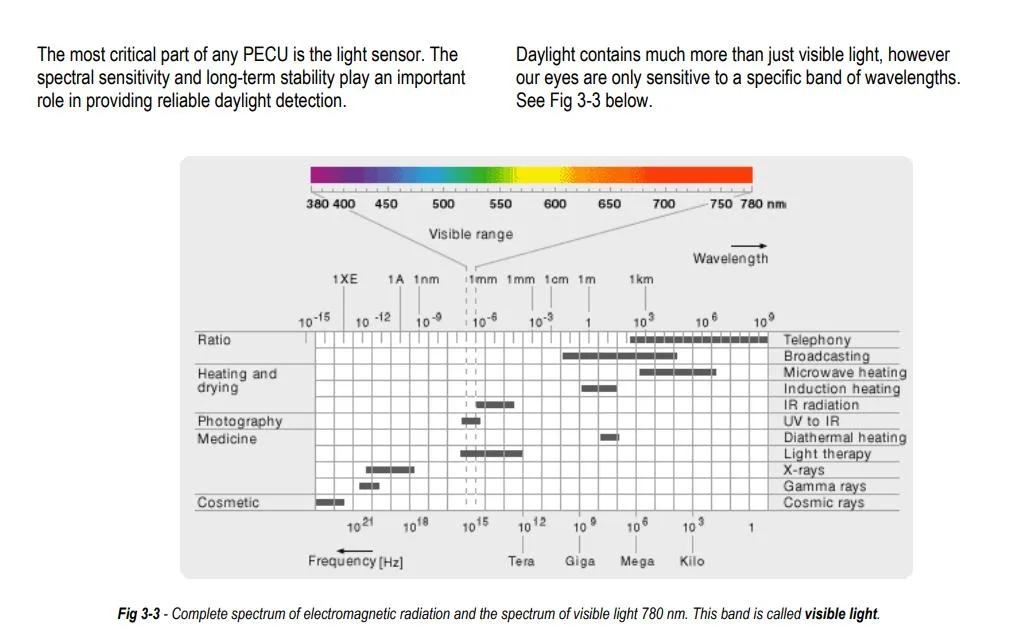

What photocells detect — the principle of photoelectric cell lighting control

A photocell sensor for outdoor led lighting measures natural light using: CdS photoresistors (legacy), silicon photodiodes (modern, RoHS-compliant), and digital ambient light ICs used in smart photocontrols. When illumination drops below approximately 30–50 lux the dusk to dawn light sensor commands the LED driver to turn on; when it rises above the dawn threshold of about 80–150 lux the lights turn off. Research reports confirm that photocell sensors operate by measuring ambient light levels (lux) and automatically switching fixtures on or off based on those thresholds.

Dusk-to-dawn is a system, not a component

A real outdoor lighting photocell system is far more complex than a low-cost light-bulb photo sensor. An industrial-grade photocell integrates a protected sensing dome, a PCB with filtering and logic circuits to prevent flicker and false triggers, and precise delay and threshold control. It also provides a stable interface to the LED driver—supporting ON/OFF signaling, 0–10V, DALI, or relay control—so the street light can operate safely on high-voltage grids. To withstand outdoor conditions, industrial photocells include 4–10 kV surge protection and a rugged, weatherproof housing with UV-stable optical windows rated to IP65/IP67 and –40°C to 70°C. These engineering requirements explain the large quality gap between true roadway photocells and inexpensive consumer-grade sensors.

Engineering Principles Behind Photocell Sensing

Analog vs digital sensing behavior

Analog photocells (CdS):

Its resistance drops as illumination increases, producing a simple and smooth response curve, but this design is low-cost and reacts more slowly than modern digital sensors.

Digital photocells (silicon IC):

Digital photocells offer high accuracy, include temperature compensation, and are immune to electrical noise, making them the preferred choice for modern street-light photocontrol and led photocell sensor systems.

How an outdoor light photo sensor interprets “night”

A dusk to dawn photocell outdoor light works by measuring lux levels, using comparator logic to check those levels against preset thresholds, applying a 5–45 second time delay, and using a hysteresis curve with different ON and OFF points before sending a switching signal to the LED driver. These steps prevent flicker caused by passing headlights or moving cloud shadows.

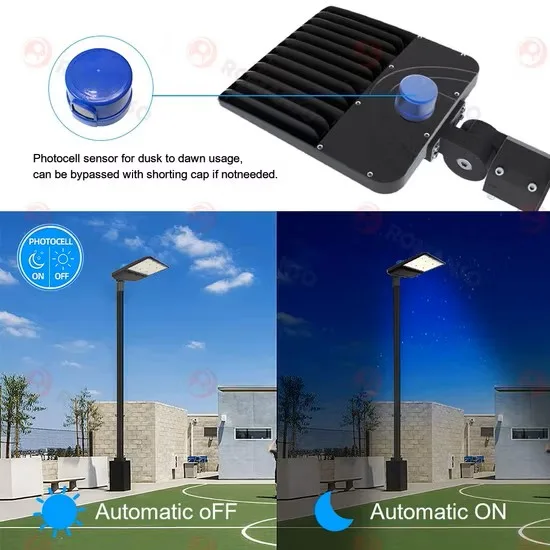

Fail-ON vs Fail-OFF modes

Fail-ON photocells keep the LEDs on 24 hours a day when a fault occurs, which is safer for roadways, while Fail-OFF photocells leave the LEDs dark and are suitable only for decorative or low-risk areas. For this reason, municipalities almost always choose Fail-ON photocells for street-light sensor networks.

Environmental engineering: EMI, UV, IP, IK

A professional dusk to dawn led sensor must provide IP65–IP67 water-ingress protection, IK08–IK10 impact resistance, a UV-stabilized polycarbonate dome, a conformal-coated PCB, and 6 kV–10 kV surge protection, while consumer-grade photocell bulbs rarely meet any of these requirements.

led dusk to dawn vs motion sensors light vs Hybrid Systems

Photocell (dusk-dawn) vs motion activated outdoor light

Hybrid dusk to dawn outdoor lighting led motion sensor

Combining a photocell with a motion sensor allows the light to run at a low-power baseline all night and switch to full brightness only when motion is detected, cutting energy use by 50–75% while improving security. This setup is widely used in industrial yards and logistics centers that rely on dusk to dawn flood lights with motion sensor.

Types of Dusk-to-Dawn / Photocell Solutions

LED bulb with photocell (light-bulb photo sensor)

An LED bulb with a built-in photocell is an easy retrofit option for basic dusk-to-dawn control. However, it is not suitable for industrial or municipal lighting and often fails inside enclosed fixtures because the sensor cannot “see” ambient light. These bulbs work best in small applications such as dawn to dusk porch lights, gate lights, and residential lamp posts.

Fixture-integrated photocells

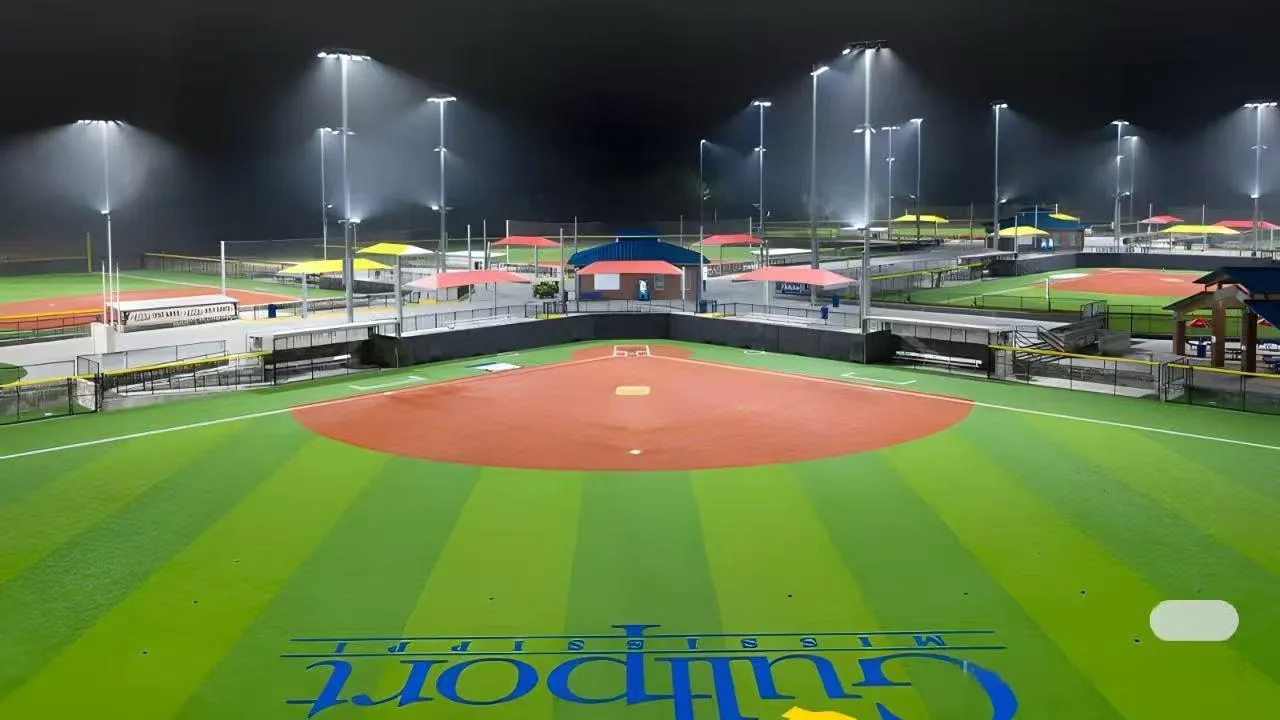

Fixture-integrated photocells are built directly into the luminaire and are commonly used in street light fixtures led, area lights, field flood lights, and commercial signage such as dusk to dawn gooseneck light. Because the sensor is positioned correctly and protected inside the fixture design, it offers better accuracy, durability, and long-term performance than bulb-style sensors.

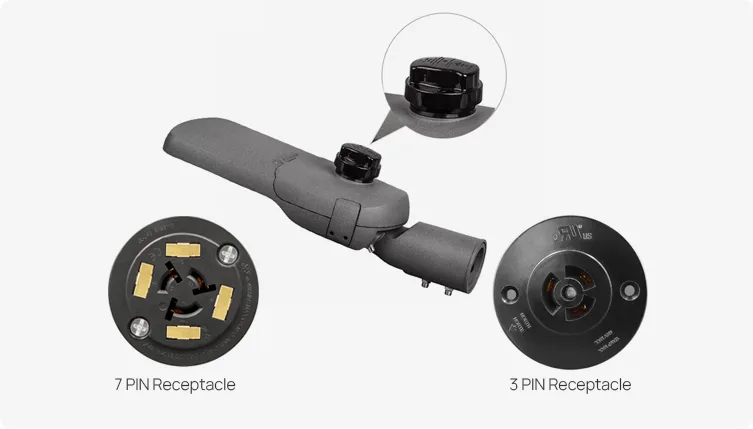

NEMA photocontrols (3-pin / 5-pin / 7-pin)

NEMA photocontrols are the industry standard for municipal lighting systems. They are plug-and-play, can be replaced in under 10 seconds, and support dimming (5-pin and 7-pin models) as well as smart control nodes (7-pin). Their replaceable, standardized design makes them the preferred option for cities managing large street-light networks.

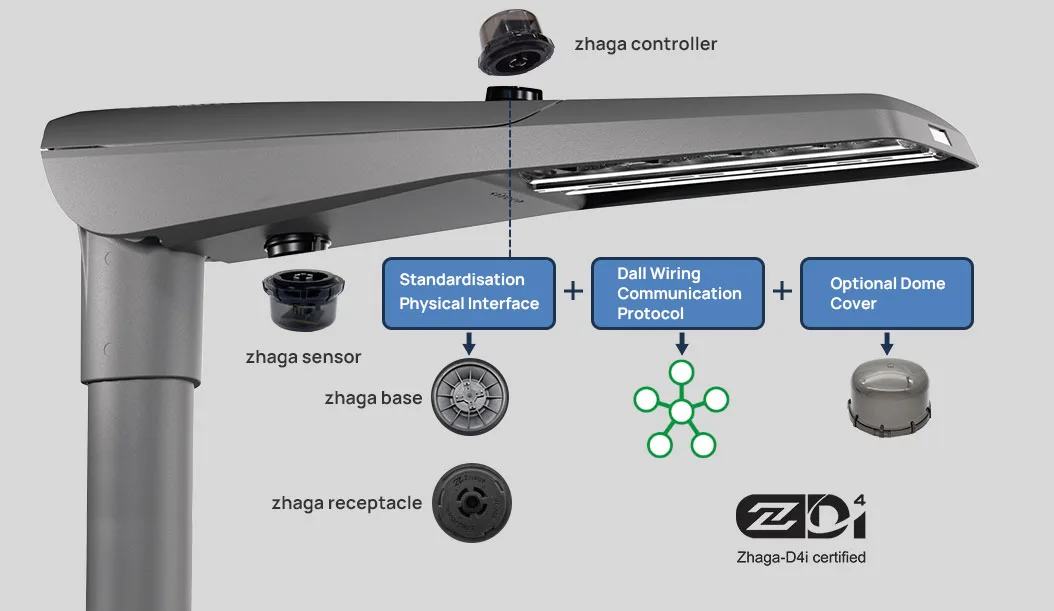

Zhaga Book 18 sensors

Zhaga Book 18 sensors are compact, future-proof modules designed for modern led street luminaires. They support smart lighting functions, digital light sensing, and advanced controls in a smaller, low-profile form factor compared with NEMA heads, making them ideal for next-generation smart-city lighting.

Dusk to dawn outdoor solar lights

Solar lights dusk to dawn combine a solar panel, battery, photocell, and LED module to provide fully off-grid lighting. These systems automatically charge during the day and turn on at night, making them suitable for rural roads, parks, pathways, and locations without access to the electrical grid.

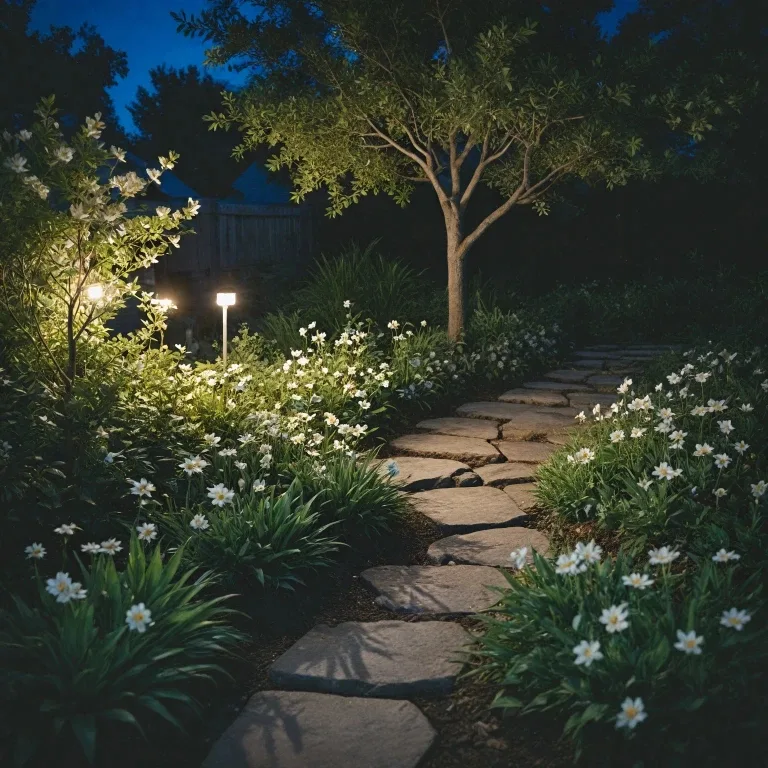

Low-voltage 12 volt dusk to dawn sensor

Low-voltage dusk-till-dawn sensors are designed for 12V modern low voltage landscape lighting, garden lights led, and signage. They offer basic photocell control but are not intended for roadway illumination because they lack the durability, sensing range, and electrical robustness required for municipal lighting environments.

Applications of Dusk-to-Dawn LED Control

Street lighting（automatic on/off street light）

In street lighting, a dusk to dawn photocell ensures synchronized citywide activation, weather-adaptive switching, lower maintenance needs, and better control of energy use. Systems built with a street light detector, street lamp photocell, dusk to dawn street light components, photocontrols, or a photoelectric cell sensor help cities maintain consistent lighting performance across all roads.

 Parking lots

Parking lots use dusk till dawn floodlight configurations to provide nighttime safety, consistent illumination, and fully automatic operation. These setups ensure that large open areas remain well lit only during dark hours, improving visibility while controlling energy consumption.

Industrial perimeters

Industrial sites often deploy dusk to dawn flood lights solar combined with motion sensors to enhance asset protection, improve worker safety, and reduce operating costs. This hybrid setup delivers baseline illumination at night and increases brightness only when movement is detected, supporting both security and efficiency.

Commercial signage & facades

Commercial buildings use dusk to dawn gooseneck light, photocell post light, and exterior lights with photocell with integrated photocells to keep signage and facades automatically illuminated at night. These systems provide consistent visibility for branding and storefronts without requiring manual control.

How to Select a Dusk-to-Dawn or Photocell System (B2B Guide)

Lux sensitivity

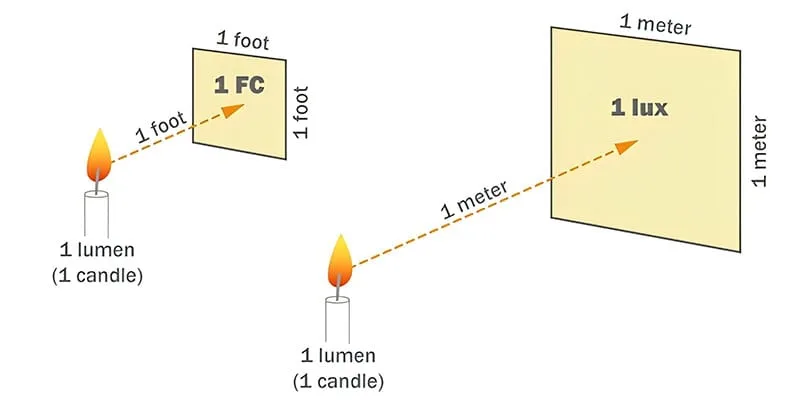

For professional dusk-to-dawn installations, the recommended sensitivity range is an ON threshold of 30–50 lux and an OFF threshold of 80–150 lux. Digital sensing is preferred because it provides better stability, more consistent switching, and improved accuracy compared with older analog photocells.

Environmental protection

Photocells for outdoor lighting should meet IP66–IP67 water-ingress protection, IK08–IK10 impact resistance, and include UV-resistant domes to prevent yellowing. For coastal or humid regions, salt-spray certification is also important to ensure long-term durability of the enclosure and optical window.

Load & surge compatibility

Municipal street light luminaires often require photocells that can handle 6 kV–10 kV surge immunity, tolerate high inrush currents, and match the specifications of modern LED drivers. Proper surge and load compatibility ensures reliable performance on high-voltage distribution grids and prevents premature sensor failure.

Mounting position matters

Correct installation is essential for accurate detection. The photocell should face north in the Northern Hemisphere to avoid direct sunlight, and it should be kept clear of shadows, roof eaves, and back-light from adjacent luminaires. Proper positioning prevents false switching and improves long-term stability.

Bulbs vs fixtures

Bulb-style photocells are suitable for small residential applications such as porches or garden posts, while fixture-integrated sensors or NEMA photocontrols are the better choice for industrial, commercial, or municipal lighting systems. These heavy-duty options offer higher accuracy, longer lifespan, and better electrical protection.

Installation & Testing Essentials

 Correct wiring (wire photocell)

Standard AC photocell wiring uses three leads: the black wire connects to the Line input, the red wire connects to the Load, and the white wire connects to Neutral. Correct wiring ensures stable ON/OFF switching and prevents flicker or premature failure of the photocell sensor.

Testing a dusk to dawn photocell sensor

To test a dusk dawn photocell sensor, first cover the sensor to confirm the ON delay, then shine a light on it to verify the OFF delay. After that, check whether the lux thresholds match the specified ON and OFF levels. During nighttime commissioning, each pole should be tested to ensure consistent behavior across the entire lighting network.

Avoiding flicker

To prevent flicker or unstable switching, a photocell must include proper embedded delay timing, a hysteresis curve with different ON/OFF thresholds, an anti-glare sensing design, and EMI filtering. These features help the photocell ignore brief light flashes, vehicle headlights, and electrical noise, ensuring smooth and reliable

Maintenance & Troubleshooting

Why photocells fail

Photocells can fail for several reasons, including dust contamination, moisture ingress, UV-yellowing of the sensing dome, surge or EMI damage, and incorrect installation orientation. These factors affect how well the photocell detects ambient light and can lead to unstable switching or total failure.

Replacement cycles

Consumer-grade photocells typically last 2–4 years, while municipal photocells generally operate for 6–10 years or more due to better sealing, sensing components, and surge protection. Smart photocontrols, which use digital light sensors and enhanced circuitry, can reach service lifespans of 10–12+ years under proper installation conditions.

Common issues & fixes

Common photocell problems have predictable causes and solutions. If the light stays ON during the daytime, the dome may be dirty or aged and needs cleaning or replacement. If the light stays OFF at night, the sensor may be facing reflective surfaces, causing a false dawn effect. Flicker often results from a missing delay feature or EMI interference. Lights that turn ON too early may have dust blocking the sensor window, while lights that turn OFF too late usually indicate a yellowed dome that must be replaced.

Smart & Next-Generation Photocell Technologies

Smart photocontrol features

Modern photocells have evolved from simple dusk-to-dawn switches into full networked controllers. Smart photocontrols now use digital lux sensing for precise light measurement, support DALI or 0–10V dimming, and offer wireless connectivity through LoRa, Zigbee, or NB-IoT. They enable remote monitoring, device health diagnostics, and over-the-air firmware updates, making them an essential component of today’s smart-city lighting systems.

Dusk-to-dawn + camera integration

A dusk-to-dawn security light with an integrated camera combines lighting, surveillance, motion detection, and photocell control in a single device. This type of multi-function fixture provides both nighttime illumination and real-time visual monitoring, making it ideal for homes, businesses, parking areas, and perimeter security applications.

AI-enhanced ambient detection

Next-generation photocells use AI-enhanced detection to adjust lighting thresholds based on weather changes, traffic density, seasonal daylight variations, and even pollution levels. By adapting to real ambient conditions, these systems reduce false triggers and significantly improve overall energy performance across outdoor lighting networks.

B2B OEM/ODM Considerations

What municipalities require

Municipal lighting projects typically demand high-reliability components, including LED systems rated for 100,000 hours of life and photocells with an MTBF of at least 75,000 hours. They also require surge protection of 10 kV or higher, standardized NEMA or Zhaga interfaces, and full UV, IK, and IP certifications to ensure long-term durability in outdoor environments.

How to specify a photocell

When specifying a photocell for a lighting project, include key parameters such as voltage and load rating, ON/OFF lux thresholds, timing delay, Fail-ON safety logic, and required surge-protection levels. It is also important to include environmental test requirements to verify reliability under heat, cold, UV exposure, and moisture.

OEM customization

Customized dusk-to-dawn LED systems may involve redesigning the optical window for better light sensing, upgrading the PCB for more advanced detection accuracy, integrating combined motion-and-photocell functions, adding smart modules for remote control, or applying private-label branding to match the customer’s product line.

Conclusion — Why Dusk-to-Dawn Control Matters for Modern LED Systems

Dusk-to-dawn and photocell sensing have evolved from simple light switches to full engineering subsystems essential for:

✔ Safety
✔ Energy efficiency
✔ Predictable runtime
✔ Lower OPEX
✔ Smart-city readiness
✔ Long-life LED performance

Whether integrated into a led light bulb with photocell or a NEMA 7-pin smart photocontrol, dusk-to-dawn automation remains one of the highest-ROI technologies in outdoor lighting.
