Lighting a baseball field is fundamentally different from lighting any other outdoor sports area. Baseball involves a small, fast-moving ball, long flight trajectories, and action spread across large zones. This means led baseball field lights must deliver high vertical illumination, long-distance beam control, and uniform light to support both players and spectators.
This guide provides a full engineering overview for facility managers, municipal planners, sports contractors, and OEM/ODM buyers seeking reliable lighting for sports fields. It covers fixture types, design parameters, cost considerations, and long-term performance requirements.

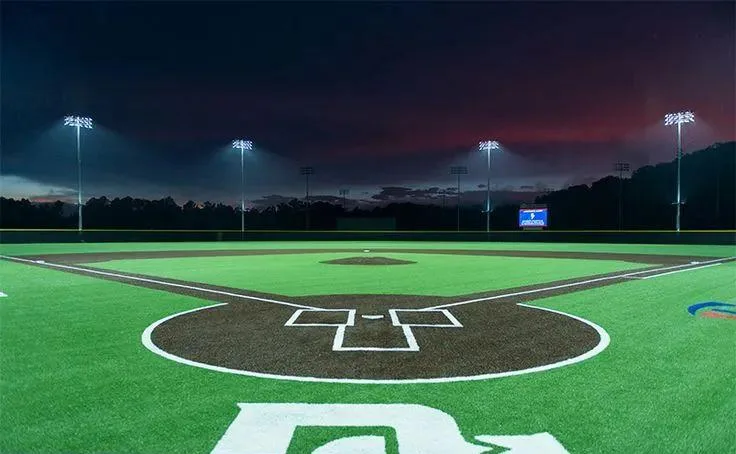

What Makes lighting baseball field Unique
The challenge of tracking a fast-moving ball
Baseball presents unique lighting challenges because the ball travels at high speeds and over long distances, requiring players to see it clearly at every moment. The infield demands intense brightness for fast ground balls and rapid reactions, while the outfield requires strong vertical illumination to track high fly balls against the night sky. Any shadow, dim zone, or uneven lighting can directly affect player performance and safety. For these reasons, baseball field lighting must meet higher technical standards than typical sportsfield lighting or soccer field lighting.
Different zones require different lighting intensities
The infield is a concentrated area that requires high illumination for pitching, batting, and rapid plays, while the outfield covers a much larger space and needs wide, balanced asymmetric optics to prevent dark zones. A well-designed baseball lighting system uses targeted baseball field with lights to control both horizontal and vertical illumination, ensuring consistent visibility across the entire field.
Consistency across the field
Glare Control
softball field lighting must minimize glare because it directly affects reaction time, ball tracking, and player safety. Industry standards such as IES RP-6 and EN 12193 set strict limits—GR ≤ 40 and LV ≤ 1000 cd/m² for advanced play. Using asymmetric sports lenses, anti-glare louvers, and cut-off optics keeps light inside the field and prevents beams from shining into players’ or spectators’ eyes.
Uniformity Control
Baseball requires very stable lighting because players constantly shift focus—from tracking pitches up close to locating fly balls 40–60 meters away. Recommended levels are about 100 foot-candles (≈1000 lux) for infields and 50 foot-candles for outfields, with U1 ≥ 0.5 and ≥ 0.4. Multi-beam optical blending and precision aiming create smooth transitions and prevent bright-to-dark jumps.

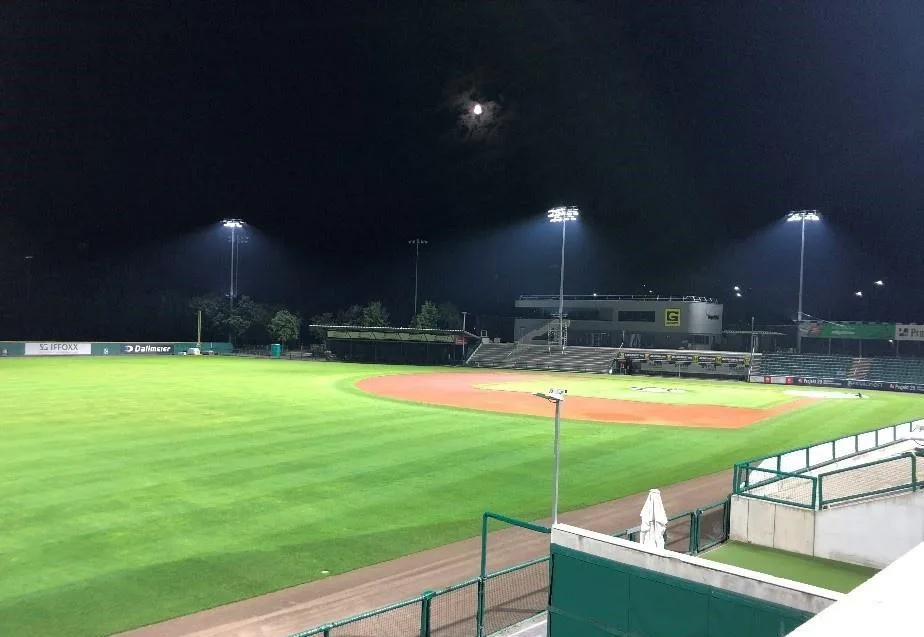

Spill Light & Obtrusive Light Control
High mast heights and long-throw optics make lighting sports fields prone to spill light, causing glare in stands, light pollution for neighbors, and sky glow. Professional baseball light fixture use asymmetric cut-off optics, visors, louvers, and ultra-low-spill distributions to confine usable light to the field. These measures reduce wasted light, improve efficiency, and protect the surrounding environment.
Transition Zones
Because infields are much brighter than outfields, poor transitions can cause sudden jumps in brightness that disrupt visual adaptation. Designers use buffer zones, blended distributions, beam stitching, and precise aiming angles to create gradual luminance shifts across the field. These techniques maintain continuous visibility, helping players move safely and track fast or high-flying balls.
Why LED Is the Leading Choice for Baseball Parks & Stadiums
LED technology has replaced metal halide and HPS systems across professional, school, and community facilities. Upgrading to LED baseball park lights delivers major performance improvements.
Higher energy efficiency
LED reduces power consumption by 50–80%.
Whether you manage a municipal field or a private facility, switching to led sports field lighting produces immediate OPEX savings.
Longer lifespan
Many led field light fixtures last 50,000–100,000 hours, compared to 6,000–12,000 hours for metal halide.
Fewer replacements = fewer lifts, fewer maintenance hours, and lower operational budget.
Better visibility
High CRI (with Standards)
EN 12193 and IES RP-6 call for CRI 80 or higher. High CRI LEDs show colors clearly, so players can see the ball, grass, and background better. This helps them judge speed and spin in fast baseball plays.
Stable Color Temperature (with Guidelines)
EN 12193 suggest a stable 4000–6500K CCT. With steady color, the field looks the same in every area. Players can track fly balls and fast ground balls without eye strain.

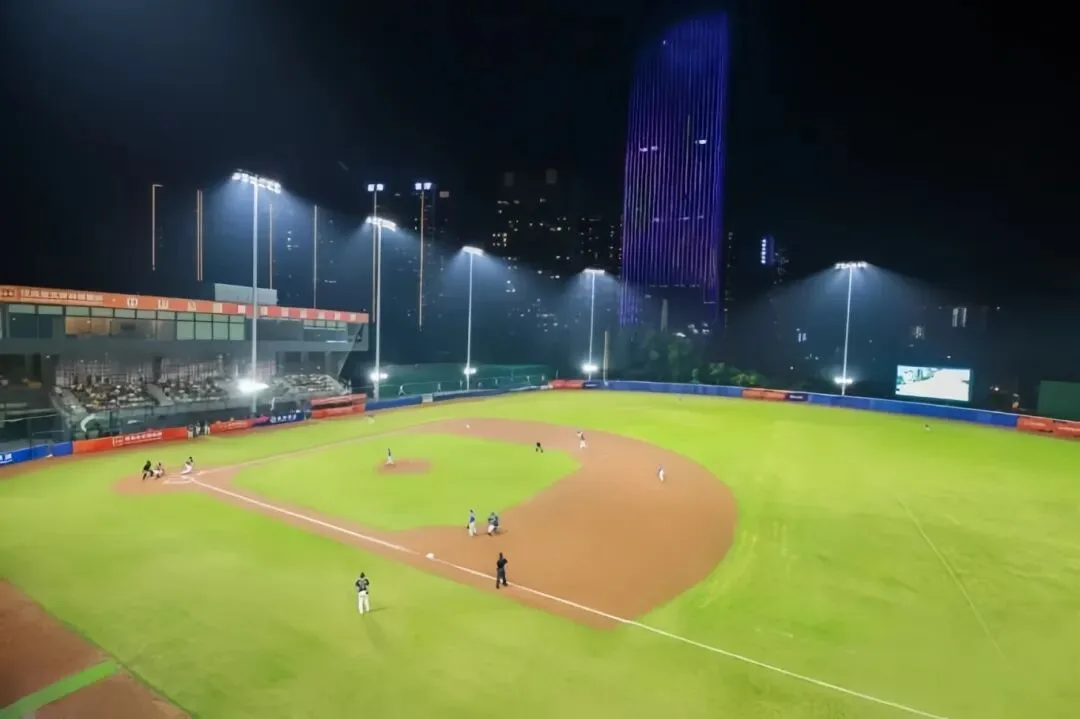

Flicker-Free Output (with Industry Rules)
IES RP-6 says sports field lights must be flicker-free. Many stadium lights use high-frequency drivers to keep flicker under 1%. This stops blur or strobe effects and helps players see the ball’s path clearly.
Balanced Brightness (with Optics Backing)
The LEDiL optics guide shows that asymmetric beams and glare shields reduce hot spots and dark zones. With EN 12193 uniformity (U1 0.5+), the ball stays visible across all field areas, even in fast plays.
Instant start & dimming
Unlike metal halide lamps, LED fixtures start instantly and support dimming—useful for practice sessions, energy-saving schedules, or events.
Lower maintenance
No more bulb replacements, ballast failures, or color shift.
This dramatically reduces baseball field lights cost over time.
Core Types of LED Baseball Field Lighting Fixtures
Choosing the right fixture type defines your field’s performance. Modern baseball parks use several categories of led athletic field lighting:
High mast flood lights
Used in professional stadiums and large community parks.
Mounted on 20–40 m poles, they deliver long-throw illumination for deep outfield areas.
Medium size led flood lights
Common in high schools and college fields.
These fixtures provide targeted infield and spectator coverage.
Multi-sport field lights
Facilities hosting baseball, softball, and soccer often choose high-output led field lighting or fld led lights for maximum versatility.
LED softball field lights
Softball fields use similar equipment but adjusted beam angles and pole heights.
Residential & community setups
Small parks and private fields often use backyard stadium lights, baseball lamps, or compact field lights. These lights give bright lighting but cost much less than full professional stadium systems.
Engineering Design Parameters for Baseball Field Lighting
This is the core of a successful project. Below are the essential engineering factors for lighting baseball field applications.
Illumination standards
Different types of fields require different brightness levels:

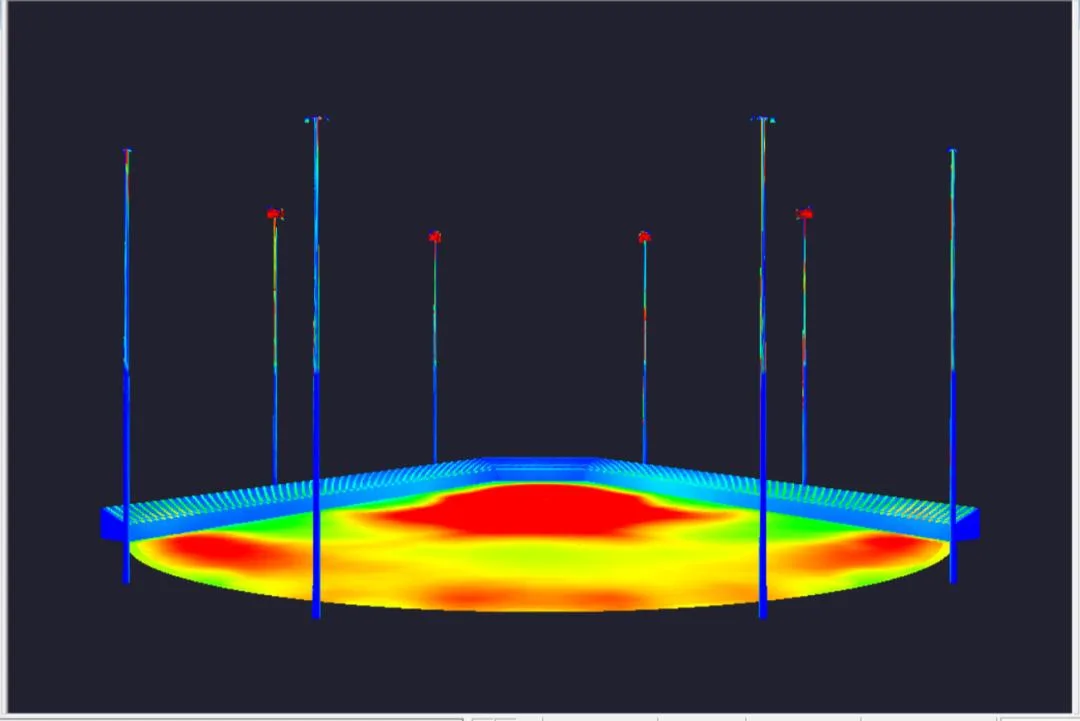

Light Levels for Each Play Level
Many guides and makers show rising FC levels by play level. Recreational fields use 30–50 FC infield and 20–30 FC outfield. High school uses 50–70 and 30–50 FC. College uses about 100 and 70 FC. Pro and TV fields need 150–200+ and 100–150 FC. These levels help players see fast balls clearly.
Recreational to High School Levels
Logos Lighting, National LED, and IES RP-6 suggest 30–70 FC for basic play. These levels let players see the ball’s path and bounce in slower games. This matches EN 12193 entry classes and works well for community play and school practice.
College and Semi-Pro Levels
College and semi-pro games are faster, so fields need about 100 FC infield and 70 FC outfield. This matches IES RP-6 Class II–III. These levels help players track fast, spinning balls and keep good safety and clear vision.
Professional and TV Fields
Pro and TV fields need the highest light: 150–200+ FC infield and 100–150 FC outfield. They also need flicker-free LEDs and strong uniformity for clear camera shots. Brands like Schréder and Philips list “HDTV flicker-free” optics to support high-speed video.
These standards ensure that baseball led lights support fast gameplay and safe conditions.

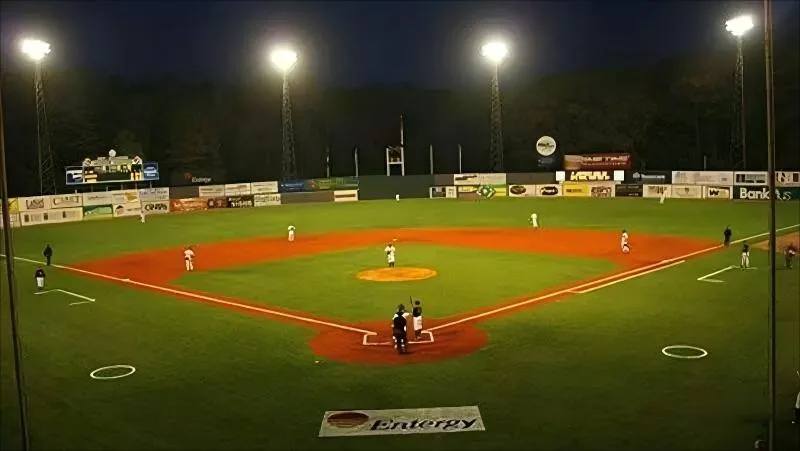

Pole layout and mounting height
The number and placement of poles define shadow control and long-range visibility.
4 / 6 / 8 pole layouts
sport field lighting practices use 4 poles for small fields, 6 poles for school fields, and 8 poles for pro venues. More poles improve uniformity, reduce shadows, and give better long-range visibility. This pattern follows common design rules based on field size and lighting needs.
Pole height guidelines
Typical baseball fields use poles about 15–30 m tall. Larger or televised fields may use higher poles for better vertical light and lower glare. Higher mounting points also help widen coverage and improve ball-tracking, which is standard in sports-lighting design.
Pole placement impact
Lighting design principles show that aiming from several directions helps reduce shadows and keep the field even. Pole number and placement affect uniformity and long-range visibility. Good layouts help players track the ball and maintain stable vision across the field.
Community-field pole height and optics
Small community fields use lower poles but still need strong beam control. Proper optics avoid hot spots and dark areas. Even with low poles, good light distribution is key to safe and clear play. It is better not to cite venue names without public technical data.
Cost, Budgeting & ROI Considerations
Base installation cost
Costs change based on many factors. These include how many poles you need, the wattage of the lights, the beam design, and the size of the project. Costs also change if you are replacing an old HID system.
Typical project budgets:
Community baseball fields
Community baseball fields cost about USD 25,000–70,000. This price usually covers the lights, poles, wiring, and aiming work needed for the field.
High school fields
High school baseball fields cost about USD 70,000–170,000. The cost includes buying the lights, setting the poles, running the cables, and aiming the fixtures.
College & professional baseball
College and professional fields cost about USD 200,000–500,000 or more. This includes full lighting systems, poles, wiring, and proper aiming for game-level use.
Operating cost savings
LED lights save money by cutting energy use and reducing maintenance. Most parks get back their investment in about 3–5 years because the running cost is much lower.
Procurement tips
When sourcing sports field lighting, make sure the supplier provides IES photometric files, strong surge protection, corrosion-resistant materials, and IP66 or higher weatherproofing. Check warranty terms, beam angles, and performance curves to confirm long-term reliability. Many professional buyers look for the best place to buy sports field lighting, but the real key is choosing a vendor with solid engineering ability and stable component supply.
Applications Across Parks, Schools & Stadiums
LED lights are used in many kinds of sports fields. Small parks use simple and low-cost baseball field lights. High schools and colleges need brighter lights with special beam designs. Pro stadiums use tall poles and strong lights for TV games. Softball fields use a similar setup with different aiming. Small backyards or club fields often use easy options like led light up baseball, stadium lights for backyard, or compact outdoor field lights.
Maintenance for Long-Term Lighting Performance
LED lights need less work than old lamps, but fields still need yearly checks. Teams should clean the lenses, check the poles for rust or tilt, test the driver and surge protection, and measure the light levels. Good care keeps the field bright, reduces glare, keeps the light even, lowers cost, and helps the lights last longer, even in tough outdoor weather.
Conclusion
LED baseball field lighting is the new global standard for sports parks, schools, colleges, and professional venues. Whether upgrading an existing HID system or building a new field, modern LED baseball field lights deliver superior performance, significantly lower operating costs, and long-term reliability.
By understanding fixture types, design parameters, optical distribution, and cost structures, facility owners and project managers can build lighting systems that offer exceptional visibility, player safety, and fan experience for years to come.
If you’re evaluating outdoor field lighting, baseball light fixture upgrades, or full-scale sportsfield lighting projects, choosing the right LED system ensures the best balance of performance and value.
